Product Description |

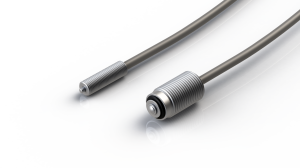

Touch Sensor |
 |
 |
| Name | STM62A-L |
| Order number | 08430421002 |
| Switch type |  N.O. |
| Signal Type | mechanical contact |
| Connection | Cable 2m |
| Connection diagramm |
 |
| Dimension (in mm) | D 9 x l = 18,8 |
|
Technical Specification |
|
| Operating voltage | 5 - 24 V DC |
| Max. load current | 10 mA |
| Switching hysterese | 0 |
| Operating temperature | 0 ° C to 80 ° C |
| Temperature drift | 0 |
| Repeat accuracy | 0,01 mm (at operating speed 50 ... 200 mm/min) |
| Swiching state | LED |
| Stroke | 0,3 mm |
| Pre-travel | 0,15 mm |
| Accuracy | 0,01 mm |
| Probe tip | Zylinder 2/R 2,5 |
| Probe tip material | Edelstahl |
| Static load | 3000 N |
| Operation load | 1 N |
| art_ttl_mech | 10 Mio. operating cycles |
| Protection category | IP67 |
| Wiring | Zweidraht/ Two wire |
| Housing material | Stainless steel V2A |
| Termination | cable 2m, 2 wire, Ø2.8 mm, oil resistant |
| Approach direction | axial |
Errors and omissions exceptet |
|
